Steam Distillation Unit
Our Products

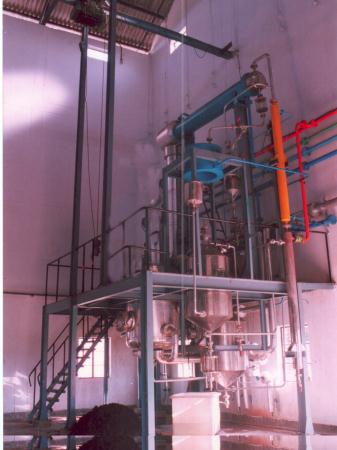

Steam Distillation Unit
Function
To Isolate & derive steam volatile essential oil from various herbs / leaves/ stems / twigs / bark/ roots.
Capacity :50 Ltrs. To 10,000 Ltrs.
Salient Features :
Easy loading & unloading facility incorporated to accomplish the entire operation comfortably. Appropriate facility provided for hydro distillation of various essential oils. Unit is designed to accomplish preconditioning of feed material under auto pressure. All safely devises are incorporated. Unique design of separators facilitates efficient separation of aqueous phase from the heavy as well as light essential oil. All fixture / accessories of standard make provided to facilitate monitoring & measuring steam inputs temperature and pressures. The entire assembly is provided with easily assemble able steel structure and internal piping.

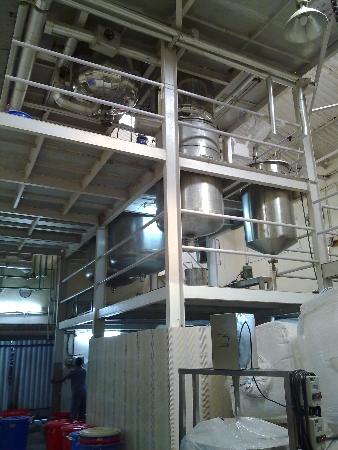

Multipurpose Solvent Extraction Unit
To extract all kinds of natural material by various solvents/ water adopting techniques such as.
- Soxlet
- Cold Percolation
- Hot Percolation
- Capacity : 50 Ltrs. To 10,000 Ltrs
Salient Features :
Multipurpose design. Facility provided to load and unload the material to be extracted easily. Reboiler provided with mechanical agitation to avoid localized heating of the extract at any given time . On line filters provided to obtain a sparking clear extract. Adequate condenser and subcooler capacity provided to minimize losses of solvent. Vacuum traps provided to facilitate recovery of solvent under reduced pressure without much evaporation loss. Pressure balancing tanks / vacating tanks provided to facilitate recovery of solvent from the extract. Entire unit is explosion proof having flame arrester attached wherever necessary. All pipelines, valves, fixtures are colour coded for easy identification and fixed at handy locations to facilitate easy operation. Sampling points provided to facilitate on line analysis. The unit is provided with all standard best available valves / gauges / fixtures sensors and instruments. Complete Unit along with easily assemblable steel structure is offered. All welded joints/finish as per internation standards. Operating manual provided with the unit. View glasses provided to have a visual inspection of the ongoing batch.
